Fiberlaser marking station F20E Energy LW3 20W lens 254

Item No. F20E254mmLW3
Gravotech  lasermarkingstation with large marking area   LARGE MARKING POSSIBILITIES With its 3-sided door, the LW3 benefits from the best inside height dimensions and can securely envelop and mark parts up to 628 mm high. Thanks to its compatibility with our Fiber, Hybrid, Green industrial laser se
Price ‚ā¨38000
excl. tax
Out of stock
This product must be ordered. Please contact us

Description

Gravotech  lasermarkingstation with large marking area

  • LARGE MARKING POSSIBILITIES

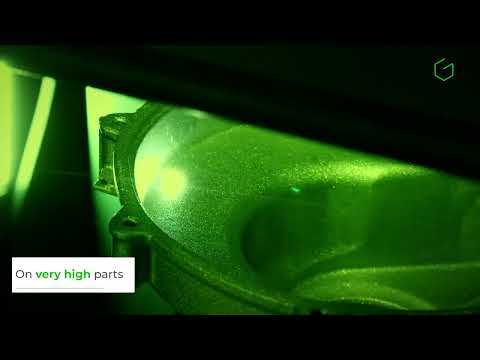

    With its 3-sided door, the LW3 benefits from the best inside height dimensions and can securely envelop and mark parts up to 628 mm high. Thanks to its compatibility with our Fiber, Hybrid, Green industrial laser series, the LW3‚ÄĮcan mark with high precision nearly every metal or plastic surfaces¬†on its special positioning table.

  • VERSATILE
    From unique identification marking, to multi-level engraving, and matrix marking on a batch of small to medium parts, this industrial laser station can mark your large part at several positions, and levels. Add a 3D module to your LW3 laser to mark sloped parts.

  • INDUSTRY ORIENTED
    This laser marking machine is the only large laser engraver of the market with an attached touchscreen allowing the operator to easily manage the direct part marking process. In addition to the easy installation, manutention, and silent/ergonomic door opening, this class 1 laser stands out with its exceptional build quality.
         LOAD BEOCHURE HERE
           LOAD MATERIAL GUIDE

Technical specifications

New ZX bridge
The LW3 is also available with a ZX bridge configuration, that enables the laser head to move along those 2 axes.
It can now mark very large parts from one end to the other, extending the effective marking area from 300 x 300 mm to 875 x 300 mm (34.45 x 11.81 in).

Integrated touchscreen
Control the marking process with the 7 inch color touchscreen.
Select jobs that are loaded in the machine and securely mark your parts.

Automatic and secure door
The 3 sided-door has been designed for ease of access and easy loading of the part.
When the marking job starts, the door automatically closes, and then reopens when it finishes. You can check the state of the permanent marking through the
380 x 210 mm protective window.
In addition, its opening adds no extra height to this class 1 laser machine.

External dimensions
Stand alone 1213 x 1023 x 1120 mm (LxWxH)
(47.76 x 40.28 x 44.09 in)
With trolley  1213 x 1023 x 2120 mm (LxWxH)
(47.76 x 40.28 x 83.47 in)

Handling
The LW3 around 200 kg, and with the optional trolley and wheels, this large laser engraver is easy to move around and handle.


LW3 FIBERLW3 HYBRIDLW3 GREEN
Model

LW3 Fiber

LW3 Hybrid

LW3 Green

Laser Technology

Fiber

Hybrid

Green

Max. object size (L x W x H)

810 x 720 x 628 mm
(31.89 x 28.35 x 24.72 in)
(depending on the focal length)

810 x 720 x 628 mm
(31.89 x 28.35 x 24.72 in)
(depending on the focal length)

810 x 720 x 628 mm
(31.89 x 28.35 x 24.72 in)
(depending on the focal length)

Max. object weight

50 kg
(110.23 lbs)

50 kg
(110.23 lbs)

50 kg
(110.23 lbs)

Power

20W / 30W / 50W

10W / 20W

5W

Power Peak

10 kW

60 kW

70 kW

Dimensions (L x W x H)

Standalone: 1213 x 1023 x 1120 mm
(47.756 x 40.276 x 44.094 in)
With trolley: 1213 x 1023 x 2120 mm
(47.756 x 40.276 x 83.465 in)

Standalone: 1213 x 1023 x 1120 mm
(47.756 x 40.276 x 44.094 in)
With trolley: 1213 x 1023 x 2120 mm
(47.756 x 40.276 x 83.465 in)

Standalone: 1213 x 1023 x 1120 mm
(47.756 x 40.276 x 44.094 in)
With trolley: 1213 x 1023 x 2120 mm
(47.756 x 40.276 x 83.465 in)

Frequency

30-60 Khz or 2 -200 Khz

10-100 Khz

10-100 Khz

Speed

Up to 10000 mm/s (393,7 in/s)

Up to 3000 mm/s
(118,11 in/s)

Up to 3000 mm/s
(118,11 in/s)

Z axis type

Motorized & Programmable

Motorized & Programmable

Motorized & Programmable

X Axis type

Motorised & Programmable

Motorised & Programmable

Motorised & Programmable

Operating Temperature

10-40¬įC

15-35¬įC

15-35¬įC

Marking Area - Available lenses

F100: 65 x 65 mm
(2.56 x 2.56 in)
F160: 110 x 110 mm
(4.33 x 4.33 in)
F254: 175 x 175 mm
(6.89 x 6.89 in)
F330: 205 x 205 mm
(8.07 x 8.07 in)
F420: 300 x 300 mm
(11.811 x 11.811 in)

F160: 110 x 110 mm
(4.33 x 4.33 in)
F254: 175 x 175 mm
(6.89 x 6.89 in)

F160: 110 x 110 mm
(4.33 x 4.33 in)
F254: 175 x 175 mm
(6.89 x 6.89 in)

Z axis stroke

Standard: 295 mm (11,614 in)
ZX configuration: 575 mm (22.638 in)

Standard: 295 mm (11,614 in)
ZX configuration: 575 mm (22.638 in)

Standard: 295 mm (11,614 in)
ZX configuration: 575 mm (22.638 in)

X axis stroke

575 mm (22,64 in) (in ZX‚ÄĮconfiguration)

575 mm (22,64 in) (in ZX‚ÄĮconfiguration)

575 mm (22,64 in) (in ZX‚ÄĮconfiguration)

Door type

3-sided & automatic

3-sided & automatic

3-sided & automatic

Communication interfaces (standard)

Ethernet TCP/IP; Terminal block 8I / 8O; Laser Safety Dedicated I/O; RS232; USB

Ethernet TCP/IP; Terminal block 8I / 8O; Laser Safety Dedicated I/O; RS232; USB

Ethernet TCP/IP; Terminal block 8I / 8O; Laser Safety Dedicated I/O; RS232; USB

Laser safety classification

Class 1 Door Closed / Class 2M door open (Aiming Diode)

Class 1 Door Closed / Class 2M door open (Aiming Diode)

Class 1 Door Closed / Class 2M door open (Aiming Diode)

Power consumption rate

800W

800W

800W

Machine weight (without laser)

200 kg
(440,92 lbs)

200 kg
(440,92 lbs)

200 kg
(440,92 lbs)

Software

Lasertrace/Gravostyle

Lasertrace/Gravostyle

Lasertrace/Gravostyle

Humidity level

10-85%

10-85%

10-85%

Rated voltage

100 - 240 VA

100 - 240 VA

100 - 240 VA

Reviews (0)

There are no reviews yet.
